Welcome

to Pioneer Custom Electrical Products

Pioneer Custom Electrical Products (Pioneer CEP) is a subsidiary of Pioneer Power Solutions. (NASDAQ: PPSI). Pioneer manufactures, sells and services a broad range of specialty electrical transmission, distribution and on-site power generation equipment for applications in the utility, industrial, commercial and backup power markets. Pioneer's principal products and services include custom-engineered electrical transformers, switchgear and engine- generator sets and controls, complemented by a national field-service organization to maintain and repair power generation assets. Pioneer is headquartered in Fort Lee, New Jersey and operates from 13 additional locations in the US, Canada, Mexico and India for manufacturing, centralized distribution, engineering, sales, service and administration. To learn more about Pioneer, please visit the website at www.pioneerpowersolutions.com. Pioneer Custom Electrical Products (Pioneer CEP) is located in the heart of Los Angeles, in a modern, 40,000 sq ft facility in the City of Santa Fe Springs. Pioneer CEP is easily accessible to all Southern California and Western US customers to fulfill urgent project needs. Pioneer CEP is the solution for quality Switchgear and Electrical Buildings. Our commitment to high quality and creative products has established Pioneer CEP as a premier manufacturer. At Pioneer CEP, innovative solutions are expected, and customer satisfaction is always guaranteed. What has set us apart is our innovative, original thinking.  We are a diversified services company dedicated to close long-term partnerships with our clients.  By responding with speed and flexibility to customers’ needs we are able to establish alliances that go far beyond the usual scope of service.  Our extremely strong capabilities and design flexibility make Pioneer Custom Electrical Products your resource of choice. Pioneer CEP offers UL 891, UL 1558, UL 67, and UL 508A rated equipment along with UL Listed enclosures in NEMA types 1, 3R, 4, 4X and 12.  Stainless steel, carbon steel and aluminum options are readily available and can be fabricated with the same ease as standard sheet metal. Our products are all made and assembled in the USA!

Investor Relations

Investors Fact Sheet

About Us

Who We Are

Pioneer Custom Electrical Products (Pioneer CEP) is an Electrical Switchgear Manufacturer and Electrical Systems Integrator. We team up with major manufacturers to provide a full range of electrical products and services, such as Integrated Power Centers / Electrical Equipment Enclosures, Metal-Clad and Metal-Enclosed Switchgears, 600V-38,000V, Low Voltage Switchgears, Switchboards, Panelboards, and Split Bus Panelboards. We provide Field Engineering Services such as field modifications to existing equipment, turnkey projects, equipment commissioning and technical trainings.

Systems Integration

Pioneer CEP can integrate any customer preferred manufactured product into our Switchgears and Integrated Power Centers. We partner with major electrical manufacturers to provide flexibility and competitive pricing to our customers.

UL Listed Switchgear

Pioneer CEP offers an extensive line of customized UL Listed on both Low and Medium Voltage Switchgear to suit the needs of its diverse customers. Read more on Switchgear

Operations & Production Schedules

Weekly Production Schedule Maintenance Schedule Safety Meetings Production Meeting Kick Off Meetings

Human Resources

Downloadable Forms Benefits ADP

Employee’s Birthdays

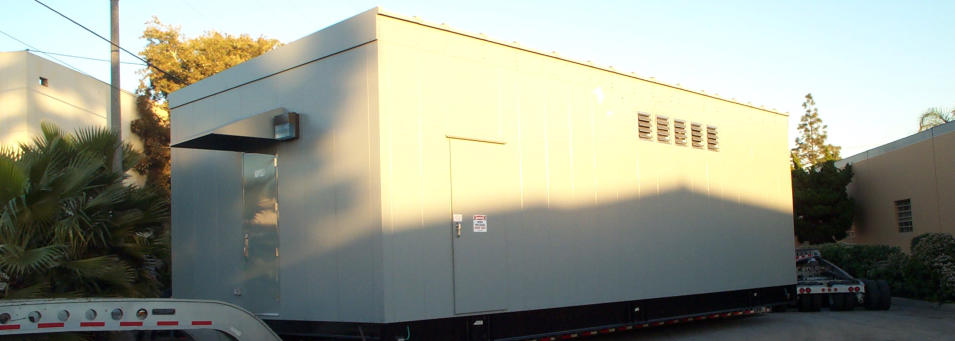

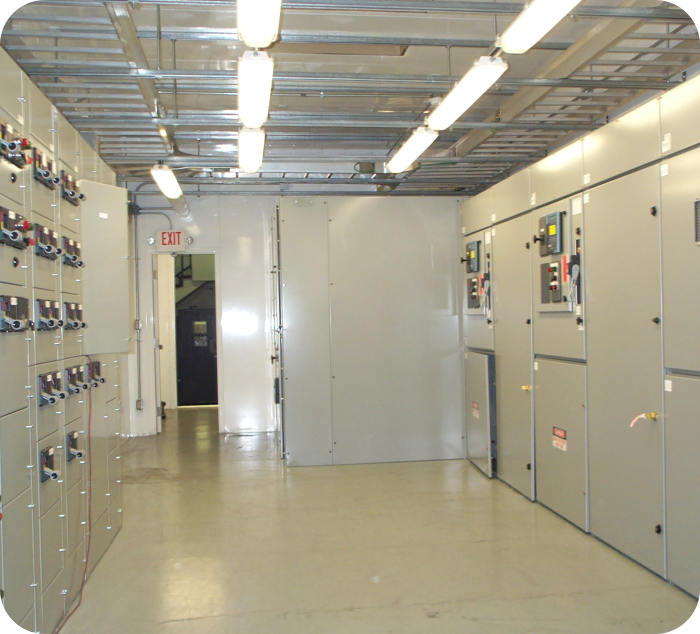

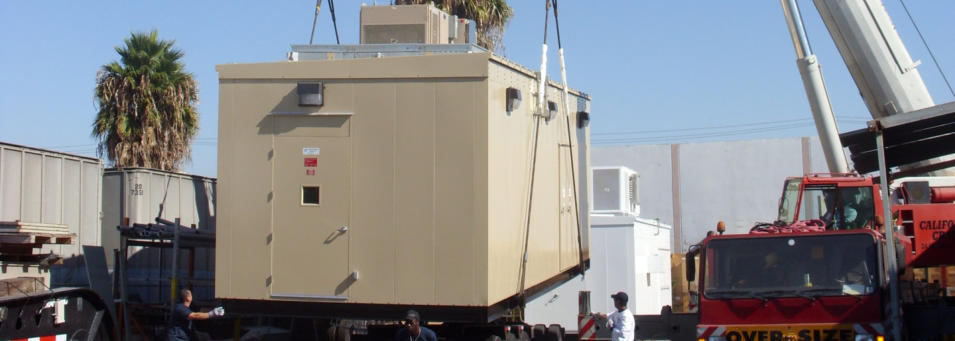

Integrated Power Centers

Pioneer CEP’s premier product is the Integrated Power Center (IPC), a fully customized electrical enclosure Integrated with Pioneer CEP electrical equipment and customer supplied furnishings. Our IPC is built with the highest quality and precision. The standard IPC is fully insulated made of 12 gauge of galvaneal steel. We express our integrity through our manufacturing style.  All of our manufacturing processes are executed meticulously, guaranteed by our certified Quality Control Technicians.

Power Distribution Solutions

At Pioneer CEP, we have the ability to custom build our switchgear from the ground up. We can custom design our equipment from single line diagrams, specifications or other information gathered from our customers. We are focused on project requirements and working closely with our clients. Because of our flexibility in design and switchgear manufacturing, we have the ability to source and install different brands of protective devices and control components at a competitive price.

Critical Power Solutions

Pioneer CEP has provided critical power solutions in Mining, Healthcare, Government, Combined Heat and Power, Co- Generation, Petrochemical and Commercial projects. Our equipment is designed and assembled at our facility in Santa Fe Springs, CA. using high quality components from reputable manufacturers including Woodward, Deep Sea, Horner, ABB and Square D.

Institution

Each project is specifically engineered and designed to fit its application and site condition. Some of these projects include critical power and customized systems. Our experience in handling these type of projects is incomparable. Hospitals, Military bases, colleges and data centers turn to Pioneer CEP’s expertise.

Commercial

We have extensive experience in switchboard and panelboard manufacturing. Our company has been supplying split bus panelboards with emphasis on energy management (Title 24 compliant) to different commercial establishments. Our switchboards power multitudes of commercial enterprises including distribution centers, shopping malls and fitness centers.

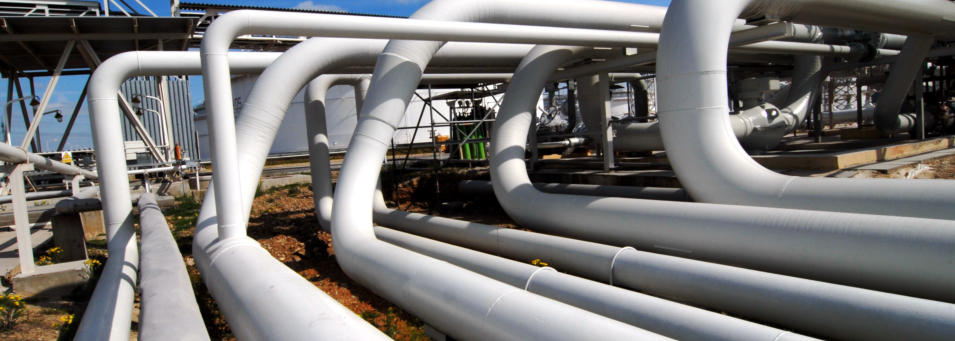

Industrial

Pioneer Custom Electrical Products has been involved in providing integrated power and custom distribution electrical systems in various industries. Examples include Petrochemical Refineries and water treatment plants.

Utility

Pioneer Custom Electrical Products has accumulated extensive experience in supplying Integrated Power Systems to different utility companies. Our building is qualified to acquire a Gold Seal Insignia issued by the State of Washington, California Modular Housing Insignia and Arizona Department of Housing Certificate Insignia. Our primary switchgear installations in California, Arizona, and Nevada produced a reliable link in the power distribution chain.

Transportation

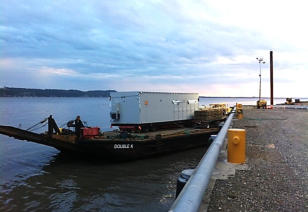

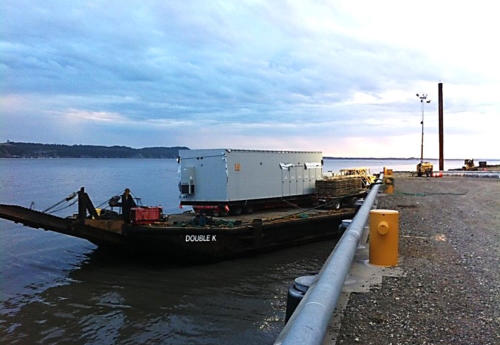

Our Integrated Power Centers and Switchgear have met the meticulous requirements imposed by the transporation industry to gain their approval. Installed throughout the United States, Pioneer CEP contributes to keeping America moving.

Renewable Energy

P ioneer Custom Electrical Products has  supplied Medium and Low Voltage equipment to this growing market. We also provided critical power and monitoring solutions to different solar and other renewable energy projects throughout California, Hawaii and Arizona.

Markets Served

Here is a list of some of our installed equipment for each market.

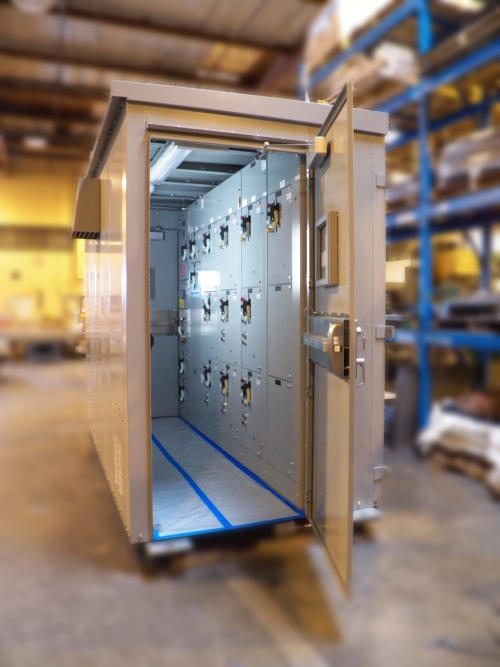

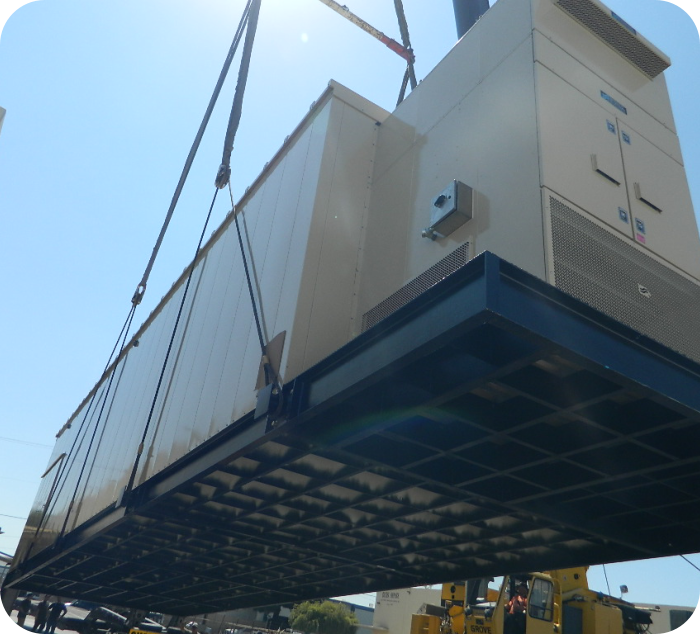

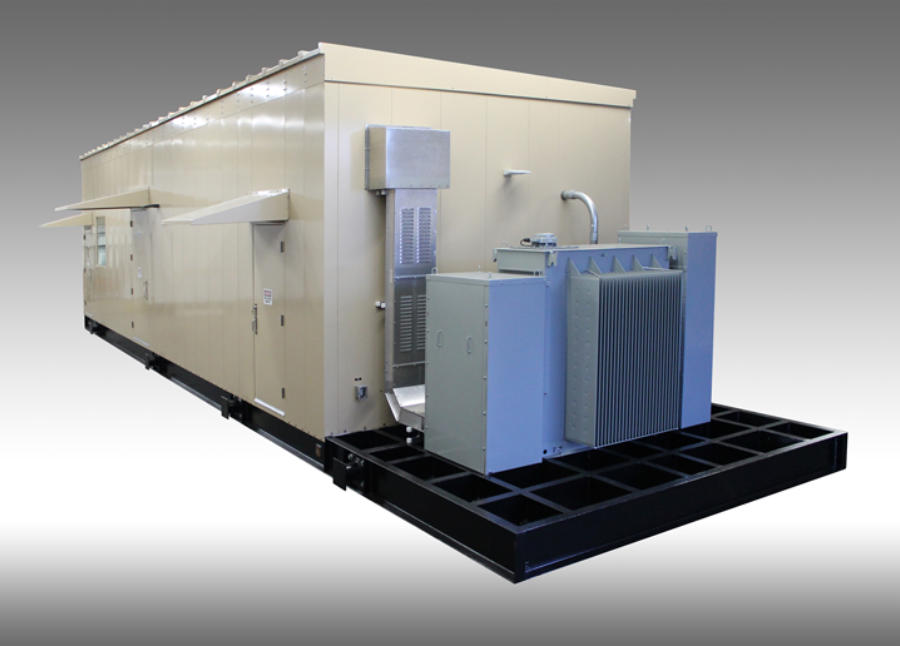

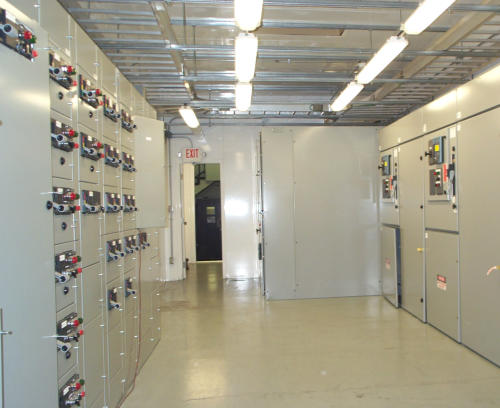

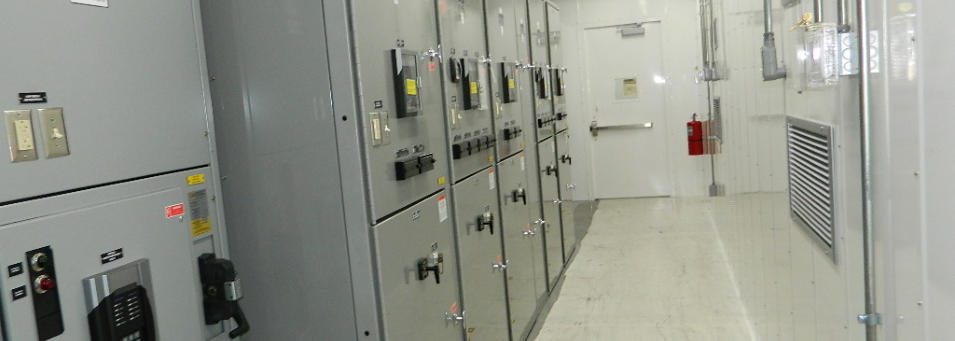

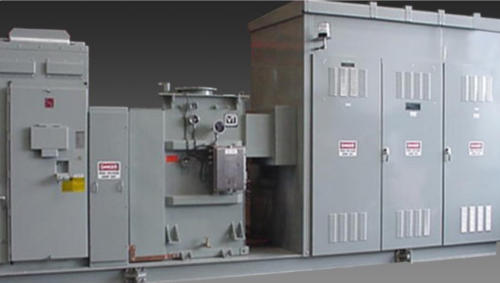

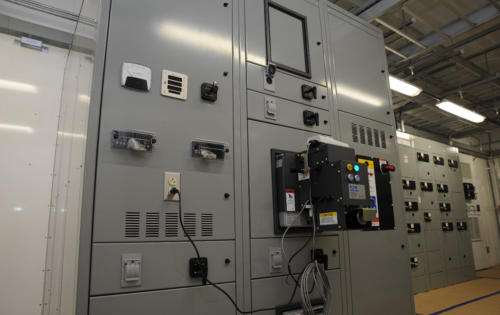

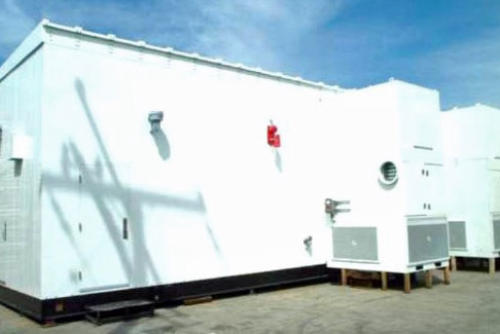

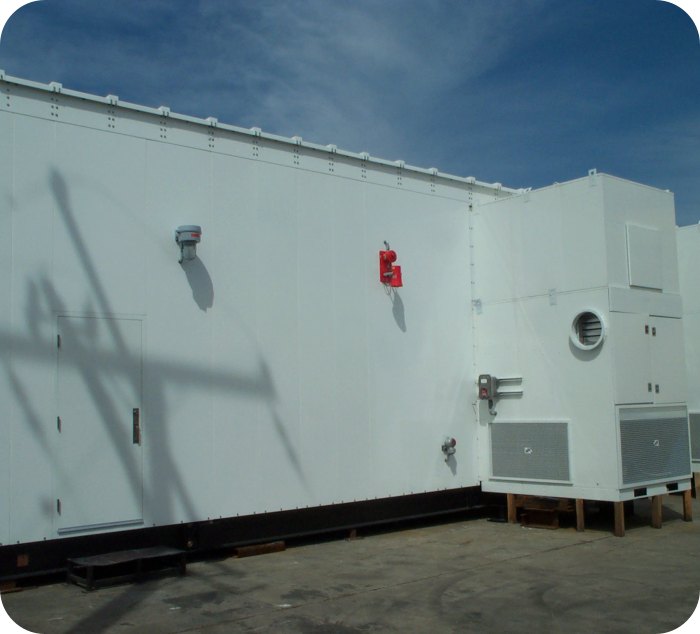

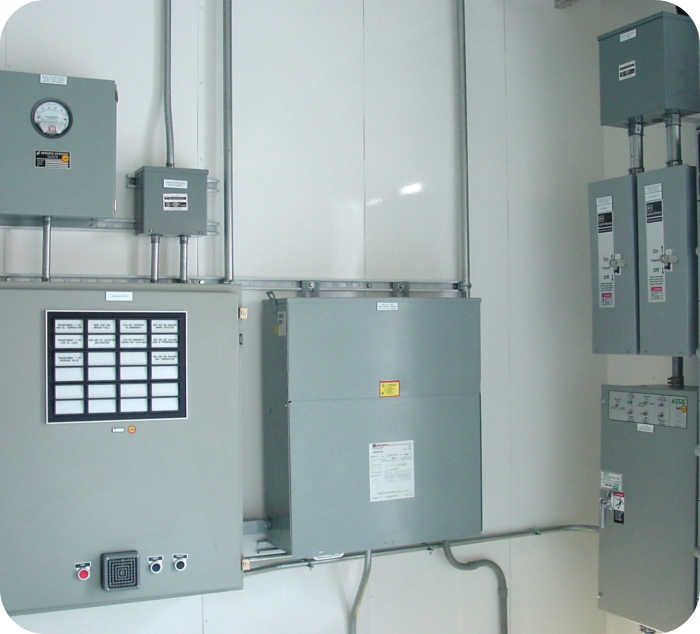

Integrated Power Centers

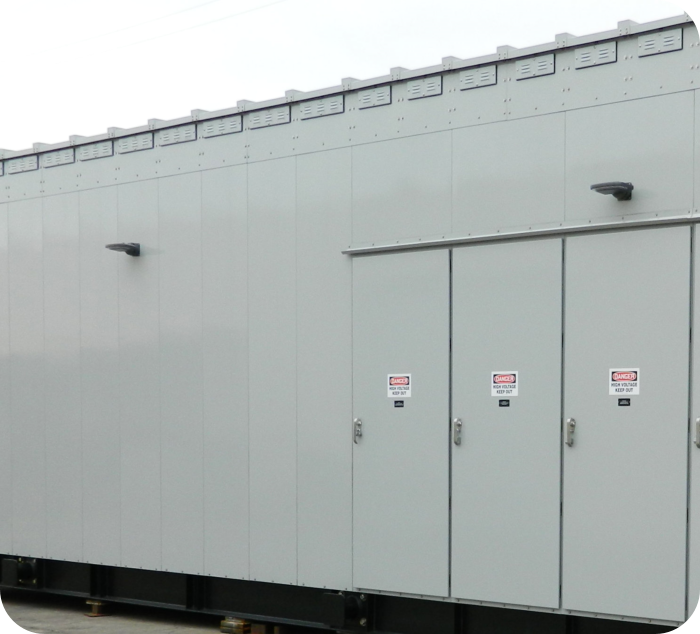

Pioneer CEP’s Integrated Power Centers (IPC) are fully customizable. Our IPC can house an array of electrical equipment with standards that protect and conserve equipment to create a unit of safety and efficiency. We create buildings that exceed expectations, with innovative designs and concepts to suit all industries and environments .

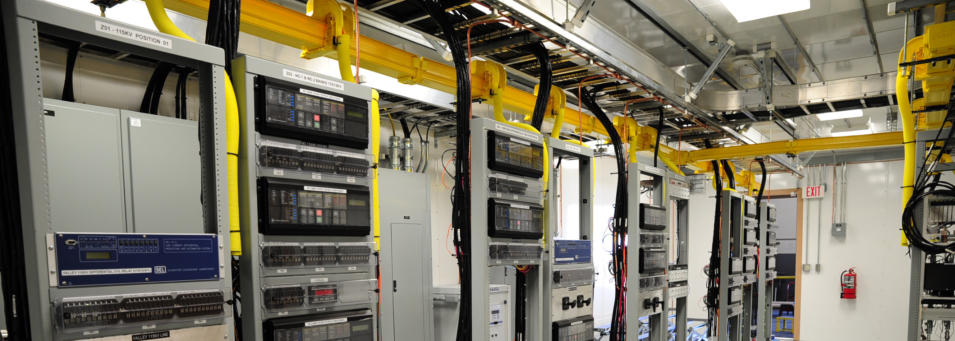

Relay Rack  System

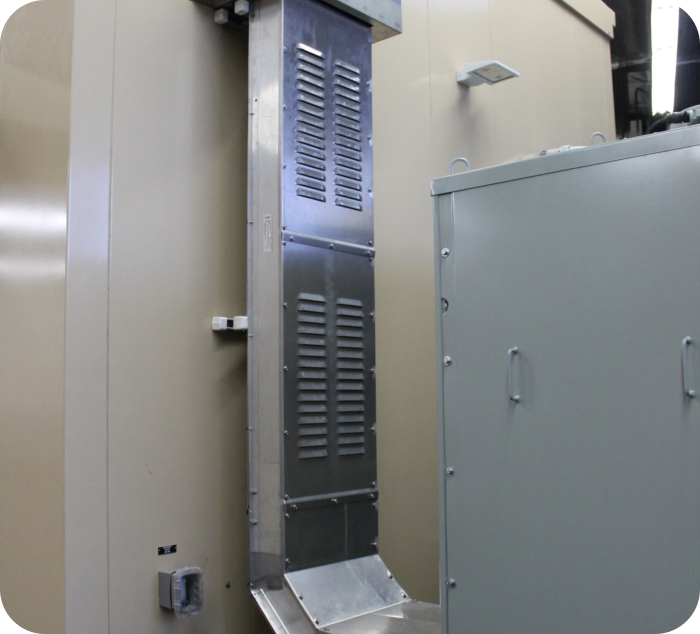

HVAC Duct System

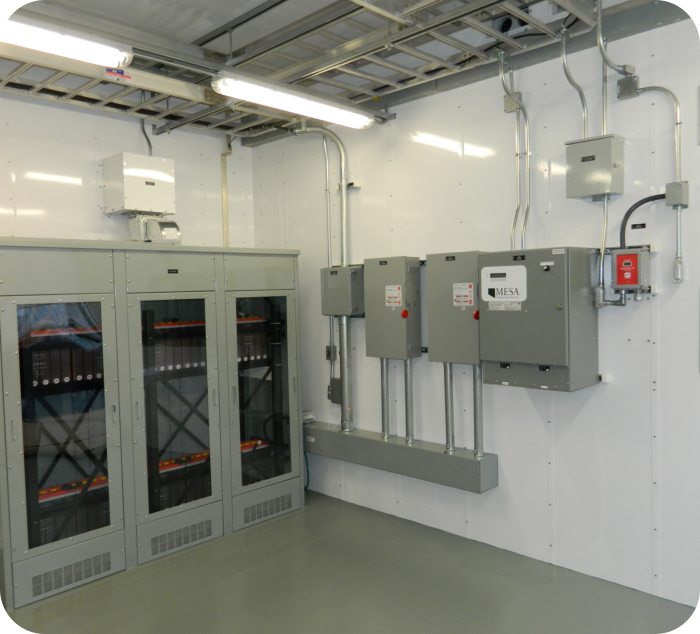

Battery System Integration

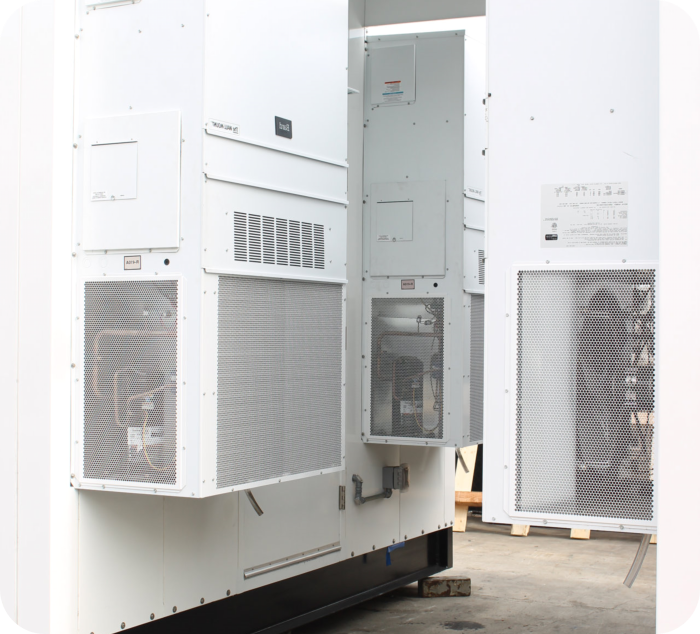

HVAC System

Annunciation System

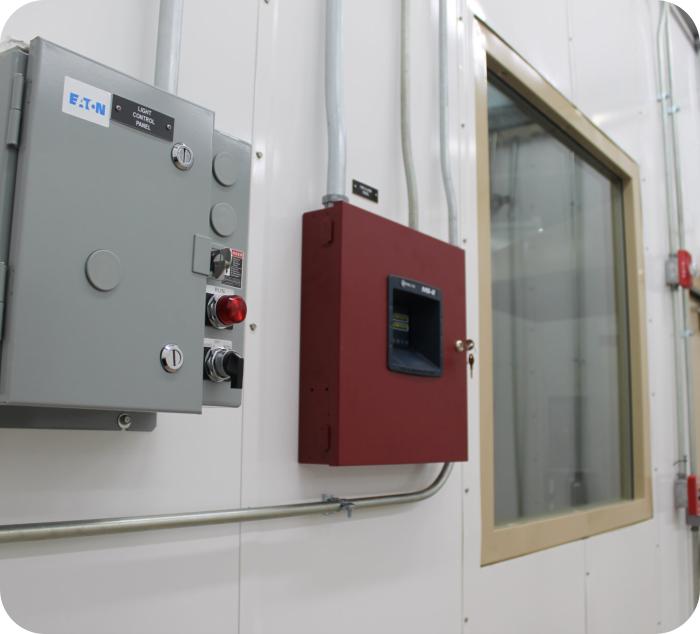

Fire Alarm System

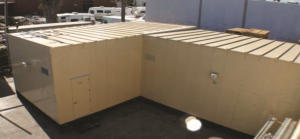

Optional Cold Roof Design

Optional P ressurization Systems for Classified Areas

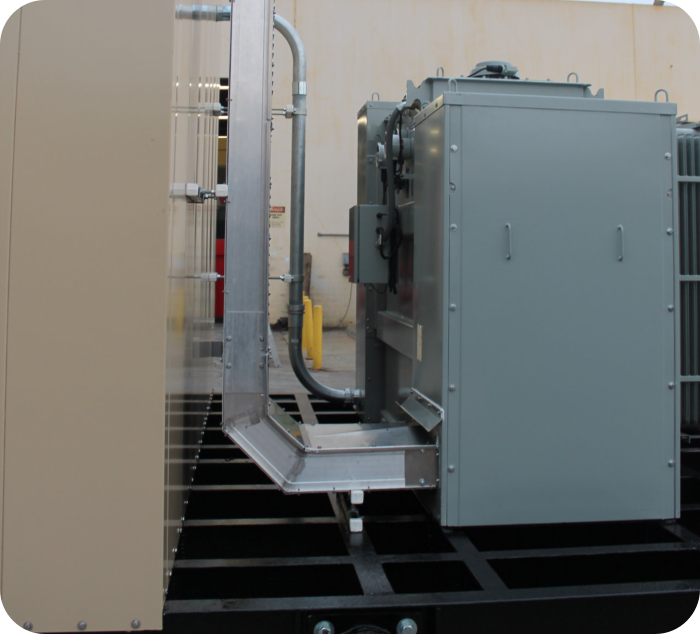

Optional Transformer Integration

Heavy Duty Base With Undercoating

Medium Voltage Integration

Relay Rack Cabinet

Low Voltage Integration

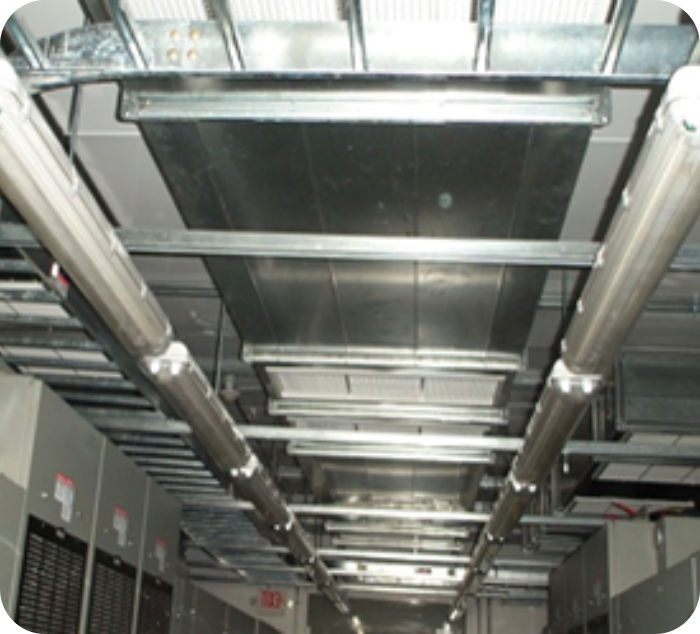

Optional Stainless Steel Cable Tray

Integrated Power Center Advantages:

• Packaging - The key benefit to the IPC is packaging. The IPC creates a single unit of responsibility where all equipment is delivered and integrated to a single location to be shipped and dropped ready to go at the job site. • Conservation - The high industrial grade quality of the IPC ensures long term protection of any customer furnished equipment. • Flexibility - Pioneer CEP offers a turn key solution with unparalleled service of innovation and efficiency. We can take care of all planning, integration, and testing (if requested) so our customers don’t have to.

Available Features:

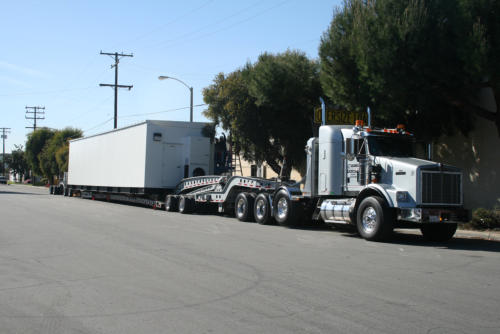

• Available in shipping sections of up to 60’L X 20’W X 17’H. • Integrated with 600V through 38kV Metal-Clad/Metal-Enclosed Switchgear and a myriad of customer furnished equipment. • The IPC can be Pressurized, Heated, Air-conditioned or simply ventilated. • Building structural drawings and calculations are stamped and signed by a Registered Structural Professional Engineer. • Building electrical systems are designed by a Registered Professional Electrical Engineer. • PE stamped electrical drawings can be provided upon request.

Available Options:

• Applications: Class I, Div II, Groups C&D • Fiber Optic Communication Systems • Arc Flash Calculations • Title 24 Calculations • State of California - Department of Housing and Community Development Certificate • State of Arizona - Department of Housing Certificate • State of Washington Gold Seal • City of Los Angeles Fabricator License Seal • Flooded Fire Suppression System • UL Field Evaluation Listing Mark

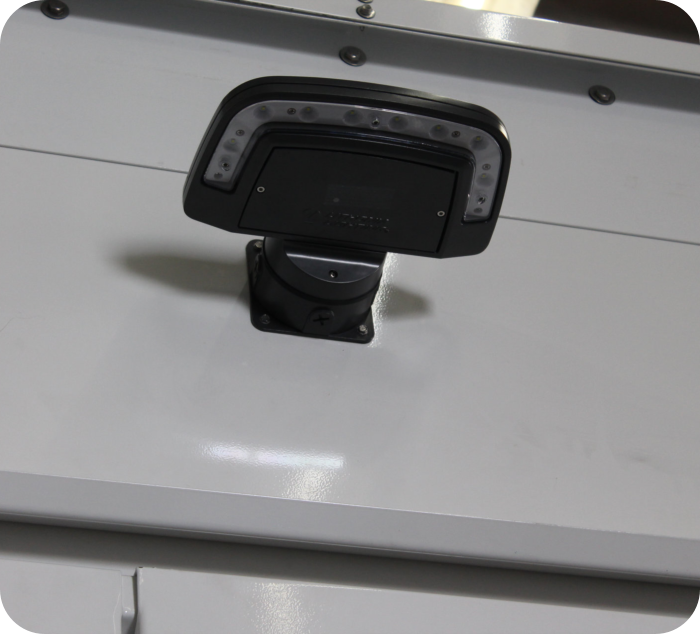

Standard LED Interior and Exterior Lighting

Power Distribution

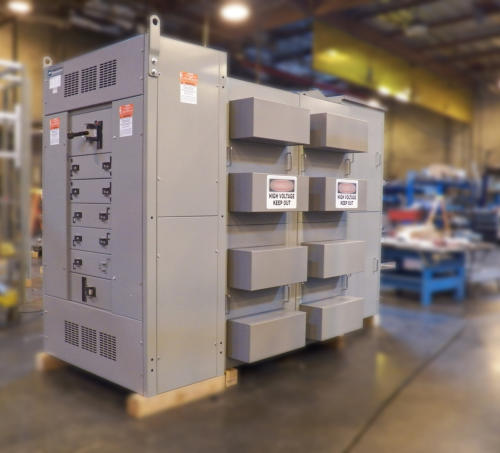

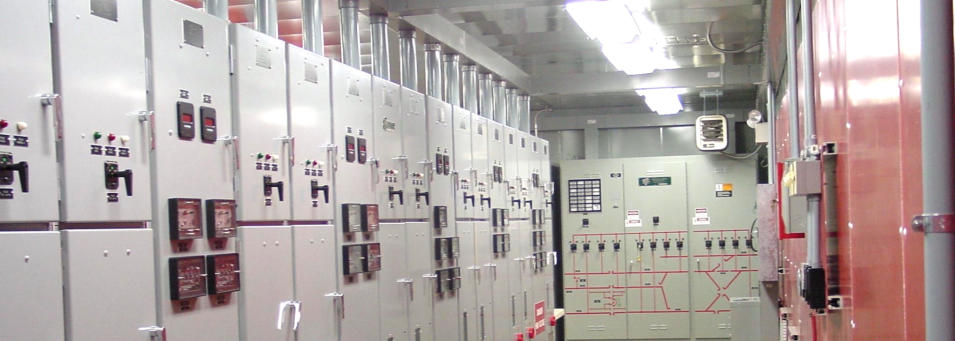

Pioneer CEP  manufactures an extensive line of UL Listed Low Voltage Switchgear and Medium Voltage Metal Clad and Metal Enclosed Switchgear—from 600V up to 38,000V. We specialize in both standard and custom switchgear applications with NEMA 1 indoor or NEMA 3R outdoor enclosures. We ensure flexibility and efficiency to our customers through our advanced integration capabilities that enable us to integrate from any of the leading manufacturers.

Medium Voltage

• Medium Voltage Metal Clad and Metal Enclosed Switchgear • Arc Resistant Medium Voltage Switchgear • Built in accordance to the following standards: o American National Standard Institute (ANSI) ▪ ANSI C37.20.1 - Switchgear Assembly including metal enclosed bus ▪ ANSI C37.20.2 - Metal Clad Switchgear o National Electrical Manufacturers Association -  (NEMA) ▪ NEMA 1 ▪ NEMA 3R (Walk In and Non Walk In Aisle) o Underwriters Laboratories (UL) ▪ MV UL  (except 27KV and 38KV rated Switchgear) ▪ UL Listed Metal Clad Switchgear ▪ UL Listed Metal Enclosed Switchgear

Low Voltage

• Low Voltage Switchgear • Arc Resistant Low Voltage Switchgear • Switchboard • Control Panel • Panelboard and California’s Title 24 Split Bus Panelboard. • Built in accordance to the  the following standards: o American National Standard Institute (ANSI) ▪ ANSI C37.20.1 - Switchgear Assembly including metal enclosed bus o National Electrical Manufacturers Association -  (NEMA) ▪ NEMA 1 ▪ NEMA 3R (Walk In and Non Walk In Aisle) ▪ NEMA 4 ▪ NEMA 4X ▪ NEMA 12 o Underwriters Laboratories (UL) ▪ UL-891 UL Listed Deadfront Switchboard ▪ UL-1558 UL Listed Switchgear ▪ UL-67 UL Listed Panelboard ▪ UL-508A UL Listed Industrial Control Panels ▪ UL 50 UL Listed Electrical Enclosures

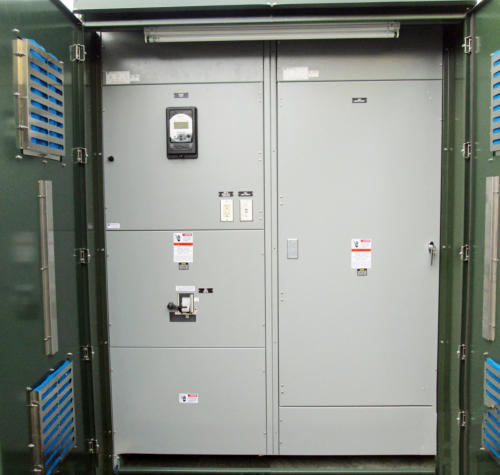

Medium Voltage

Pioneer CEP  manufactures a line of UL Listed Medium Voltage Metal Clad and Metal Enclosed Switchgear—from 2400V up to 38,000V. We specialize in both standard and custom switchgear applications with NEMA 1 indoor or NEMA 3R outdoor enclosures. We ensure flexibility and efficiency to our customers through our advanced integration capabilities that enable us to integrate component options from any of the leading manufacturers.

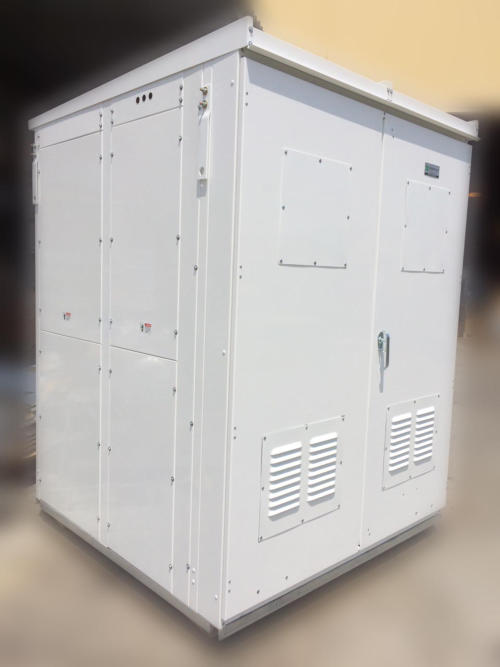

Medium Voltage Metal Enclosed Switchgear

• Pioneer CEP’s 5kV and 38kV rated Metal Enclosed switchgear is comprised of free standing, vertical, dead front steel structures using components from Square D, Eaton, ABB or Powercon Switches, a main bus system, and auxiliary compartments. Our OEM structure is bolted construction and fabricated with A60 galvaneal steel, with corrosion resistant properties and painted ANSI 61 Gray finish. Custom coating is available. • Pioneer CEP offers indoor and outdoor (Non Walk in or Walk In Aisle) enclosures with a current rating of 600A to 3000A. • MV UL Listed (Except 27KV and 38KV Metal Enclosed Switchgear)

Innovation, Quality and Integrity

Innovation, Quality and Integrity

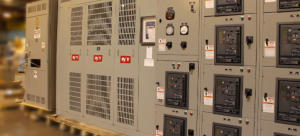

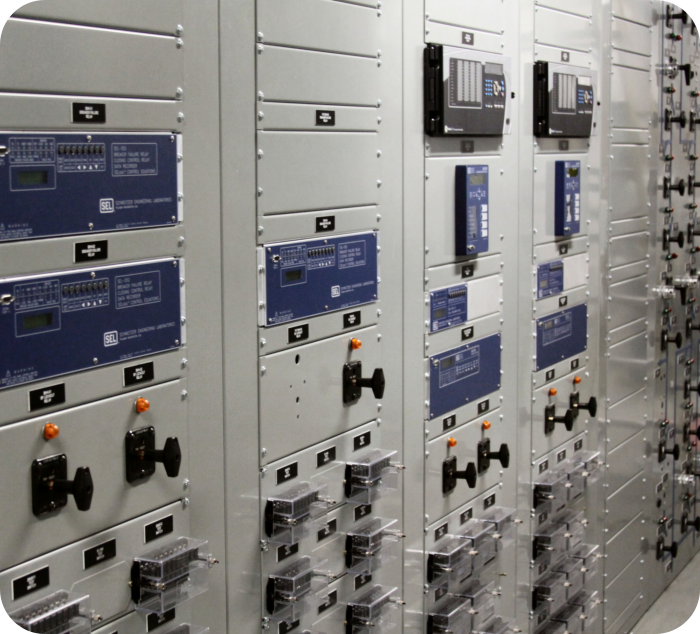

Medium Voltage Metal Clad Switchgear

• Pioneer CEP’s 5kV and 15kV rated Metal Clad switchgear is comprised of free standing, vertical, dead front steel structures and compartmentalized using components from Eaton, Siemens or Powell vacuum circuit breaker compartments and draw out circuit breakers, a main bus system, and auxiliary compartments. The assembly can include instrument transformers, relay protection, control devices, and connection provisions for primary, ground, and control circuits.  Our OEM structure is bolted construction and fabricated with A60 galvaneal steel, with corrosion resistant properties and painted ANSI 61 Gray finish. Custom coating is available. • Pioneer CEP offers indoor and outdoor (Non Walk in or Walk In Aisle) enclosures with a current rating of 1200A to 3000A. • MV UL Listed. (Except 27KV and 38KV Metal Enclosed Switchgear)

25KV / 38 KV Medium Voltage Metal Clad Switchgear

• Pioneer CEP’s 25kV and 38kV rated Metal Clad switchgear design is free standing, vertical, dead front steel structures using components from Eaton or Powell vacuum circuit breaker compartments and draw out circuit breakers, main bus system, and auxiliary compartments. The assembly can include instrument transformers, relay protection , control devices, and connection provisions for primary, ground, and control circuits.  Our OEM structure is bolted construction and fabricated with A60 galvaneal steel, with corrosion resistant properties and painted ANSI 61 Gray finish. Custom coating is available. • We offer indoor and outdoor (Non Walk in or Walk In Aisle) enclosures with a current rating of 1200A to 3000A.

Low Voltage

Pioneer CEP  manufactures a line of UL Listed Low Voltage Switchgear and Switchboards, rated up to 600V. Panelboard and  Title 24 split bus Panelboard rated up to 480V. We specialize in both standard and custom switchgear applications with NEMA 1 indoor or NEMA 3R outdoor enclosures. We ensure flexibility and efficiency to our customers through our advanced integration capabilities that enable us to integrate component options from any of the leading manufacturers.

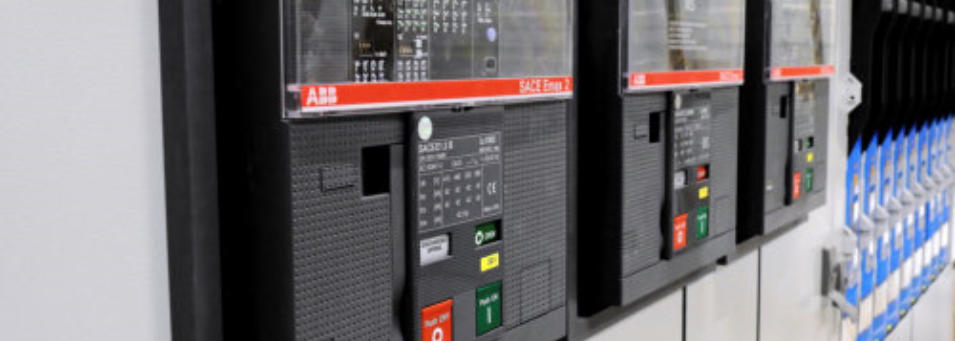

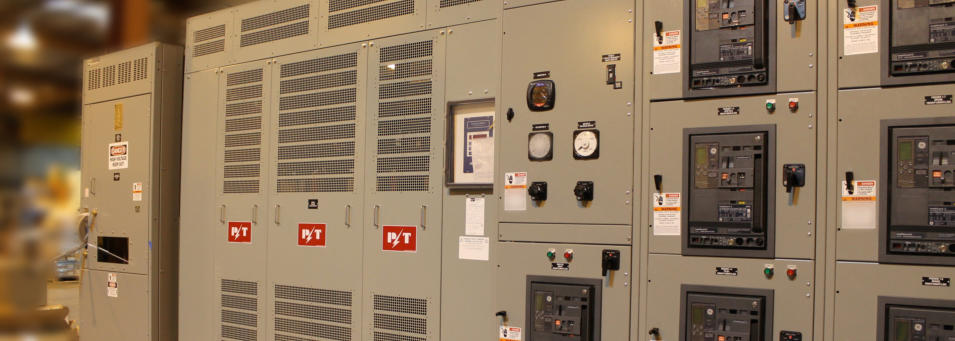

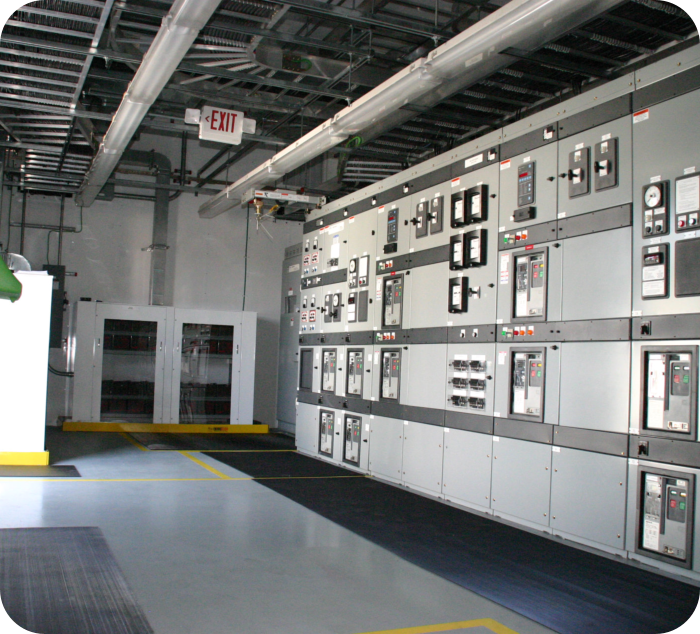

Low Voltage Switchgear

• Low Voltage switchgear is comprised of free standing, vertical, barriered and compartmentalized sections. Pioneer CEP switchgear utilizes GE, Siemens or Eaton draw out power circuit breakers and components, cross bus, instrument transformers and auxiliary compartments available with barriers. Our OEM structure is bolted construction and fabricated with 12GA., A60 galvaneal steel, with corrosion resistant properties and painted ANSI 61 Gray finish. Custom coating is available. • Pioneer CEP offers NEMA 1 indoor and NEMA 3R outdoor (Non Walk in or Walk In Aisle) enclosure. • System Voltage available from 120V through 600V. • Current rating ranges from 800A to 6000A. • CU Bus Bracing is rated up to 100 KAIC. • Available with UL 891 and UL 1558 Listing. • Optional 304 or 316 Stainless Steel Enclosure.

Innovation, Quality and Integrity

Innovation, Quality and Integrity

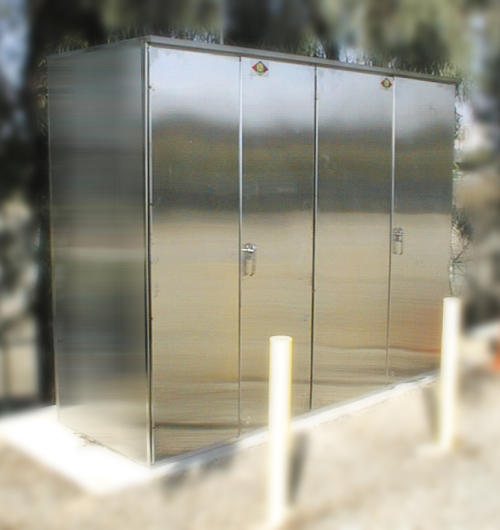

Dead Front Switchboards

• Low Voltage switchboards are comprised of free standing, vertical, dead front steel structures. Pioneer CEP switchboards utilize GE or Siemens circuit breaker components and power circuit breakers, molded case circuit breakers, fusible switches, a main bus system, instrument transformers and auxiliary compartments as needed. Our OEM structure is bolted construction and fabricated with 12GA., A60 galvaneal steel, with corrosion resistant properties and painted ANSI 61 Gray finish. Custom coating is available. • Pioneer CEP offers NEMA 1 indoor and NEMA 3R outdoor (Non Walk in or Walk In Aisle) enclosure. • System Voltage available from 120V through 600V. • Current rating ranges from 400A to 6000A. • Bus Bracing is rated up to 200 kAIC. • Available with UL  891 Listing.

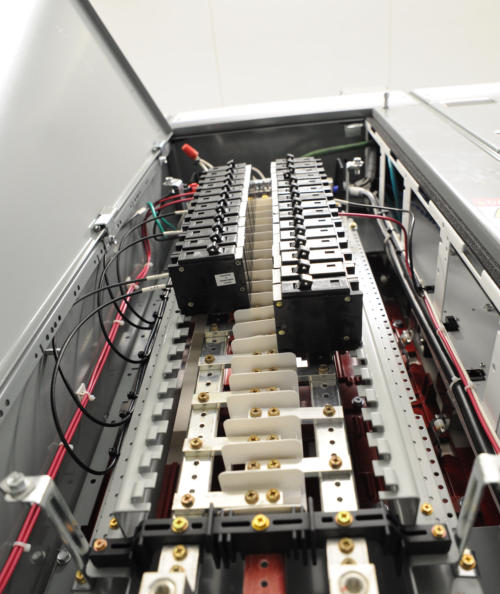

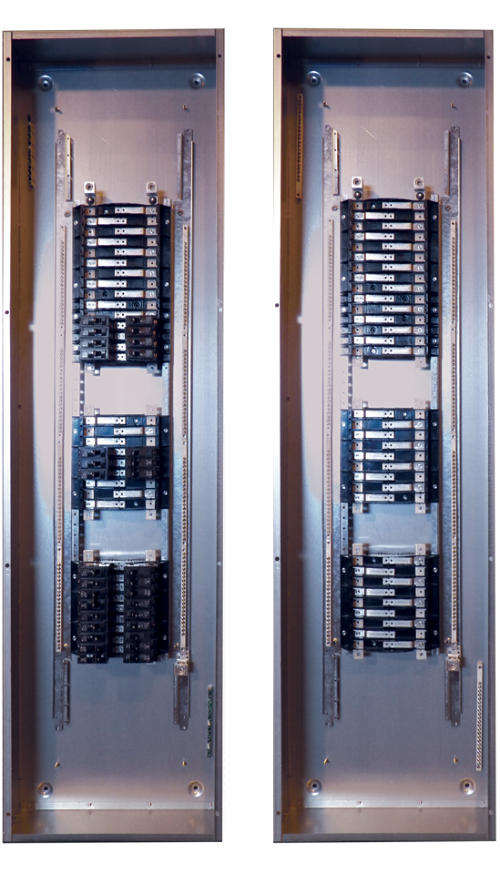

Panelboard and Split Bus Panelboard

• Panelboards are UL 67 Listed. • Cabinet, boxes, and trims are UL 50 Listed. • California’s Title 24 Split Bus Panelboard. • Pioneer CEP Panelboards are designed for sequence phase connection of branch circuit devices. • Main lugs are mechanical solderless type. • Enclosures are painted in ANSI-61 light gray finish. • Standard panelboard cabinets are available with NEMA 1 indoor and NEMA 3R Outdoor rating. • System Voltage available from 120V through 480V. • Current rating ranges from 100A to 1200A. • Bus Bracing is rated up to 100 kAIC. • Custom NEMA 4X enclosures are available.

Critical Power

Pioneer CEP’s  critical power solutions are designed to reduce the risk of unplanned downtime which lead to costly operations and loss of revenue to our customers. Our main focus is delivering cost effective solutions that will fit the purpose and get the highest level of quality, efficiency and reliability.

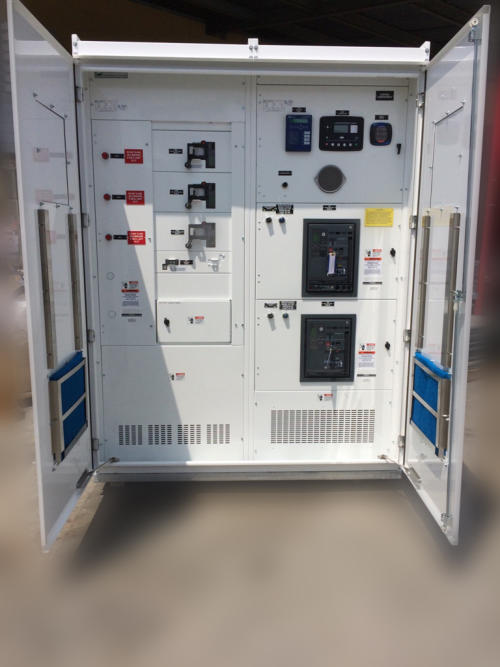

Automatic Transfer Switchgear

• Power Circuit Breaker Type Automatic Transfer Switchgear. • System voltage available from 480V to 15kV. • Current rating up to 3000A. • Certification: UL 891, UL 1008 and UL 1008A. • Microprocessor based programmable  controller.

Paralleling Switchgear

• Microprocessor based programmable controller. • Equipped with Programmable Logic Controllers (PLC) for system controls. • Available with Redundant PLC, CPU and I/O. • Available with 10”,12”,15”,17” or 20”  LCD Touchscreen HMI. • Low Voltage Switchgear - available with UL 891 and UL 1558 construction. • Configurable and designed for customer specific requirements..

Institution



Transportation



Renewable Energy



Commercial



Industrial



Utility



Our Gallery

Request for Quote

Customer Portal to Request for Quote.

Technical Library & Forms

Portal

Customer Portal to Partner Manufacturer Product Information and Downloadable Pioneer CEP Forms • Pioneer CEP Line Card • Pioneer CEP Field Service • Pioneer CEP Credit Application • Pioneer CEP Standard Drawings

Warranty Claims and Field

Service Request

Customer Portal for Warranty Claims and Field Service Requests

Bulletin Board

New Website launched  - 9/2017

Pioneer Custom Electric Products’ new website will feature updated information about Pioneer CEP’s product line, updated product information and details for Integrated Power Systems, Power Distribution and Critical Power Solutions.

We invite you to visit our booth at

2018 IEEE PES T & D Conference and Exposition

Pioneer Power Solutions, Inc.

Booth# 3935

Conference Date:  4/16/2018 to 4/19/2018

Exposition Date:  4/17/2018 to 4/19/2018

Venue: Colorado Convention Center

           700 14th St. Denver,CO 80202

Career Opportunities

Pioneer Custom Electrical Products is continuously seeking talented individuals willing to learn new concepts, who are team-oriented and seeking to improve their professional career and work as part of our team.

Current Openings

• Project Electrical Engineer • Sales Manager • Wireman

Interested Applicants

 Please send your resume with cover letter in portable document format or word format to Lani Basa at Lani.Basa@pioneercep,com.

Technical Library

Partner Manufacturer Product Information

General Electric Circuit Breakers Entelliguard Circuit Breaker Power Break II Circuit Breaker Spectra ETU Molded Circuit Breaker Spectra RMS Molded Circuit Breakers Q-line Circuit Breakers General Electric  / ITI Current Transformer Voltage Transformers Control Power Transformers GE Pilot and Signaling Device GE Test Switches Powell Industries Vacuum Circuit Breaker Power-Vac Circuit Breaker Boltswitch Inc. Open Switches Outline Drawings Eaton Corporation VCP-W Vacuum Circuit Breaker Siemens Industry WL Series Power Circuit Breakers VL Series  Power Distribution Circuit Breakers Sentron Series Molded Case Circuit Breakers Square D Company 5KV-38KV HVL Switch LSIS Circuit Breakers Schweitzer Engineering Laboratories - Relays Electro Industries - Power Meters Electroswitch Breaker Control Switches Lock Out Relay ABB 4.76 KV - 38 KV Versarupter Switch FT Test Switch Relion Relays Surge Arresters Instrument Transformers

Downloadable Forms

Pioneer CEP Line Card (PDF) Pioneer CEP Credit Application (PDF) Pioneer CEP Buy American Statement (PDF) Pioneer CEP Field Service and Engineering Rates (PDF) CA Resale Certificate (PDF)

Pioneer CEP Standard Drawings

Outdoor 15 KV Load Interrupter Switch (PDF) Outdoor 15KV Metal Clad Switchgear (PDF) Indoor/Outdoor 5KV Load Interrupter Switch (PDF) Outdoor 27 KV Metal Clad Switchgear (PDF) NEMA 1 480V Switchboard (PDF) NEMA 1 Double Ended Switchgear (PDF) Products for Mission Critical Facilities (PDF)
